Description

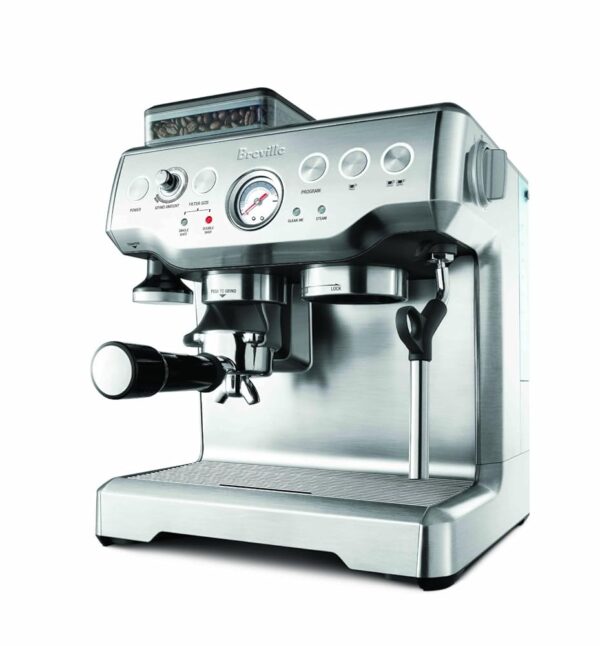

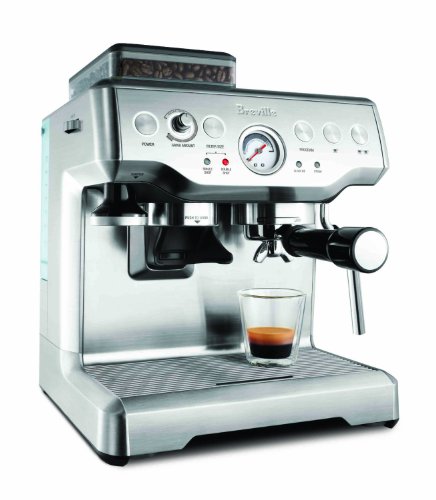

The Breville BES860XL Barista Express is an all in one espresso machine: a pump machine with a conical burr grinder built into the same body, a swivel steam wand, a removable tank with a water filter, a cup warmer and a dial and button interface. The listing gives dimensions of 11.5 by 14.5 by 13.25 inches and dates the product to December 2009, which makes it one of the longest running designs in this category.
The BES860XL is the earlier generation of the Barista Express line. The current version, the Breville BES870XL, shares the same concept and most of the same hardware with refinements to the grinder and the interface. Both answer the same question: whether one appliance can hold a grinder and a machine without doing either badly. Against separate components the all in one always loses on grinder quality and wins on counter space.
The Integrated Burr Grinder
The grinder is the reason to buy this machine rather than a cheaper pump machine and a bag of pre ground coffee. It is a conical burr grinder feeding directly into the portafilter, with a dial for grind size and a control for dose. Grinding into the portafilter is fast and wastes very little coffee, and it is what makes a fresh ground shot a thirty second job rather than a two appliance ritual.
The trade off is that a grinder built into a machine body is smaller and less capable than a standalone grinder at the same price, and grinding directly into the basket produces a bed that needs distributing before tamping. The listing does not state the number of grind settings, the burr size or whether the adjustment is stepped or stepless, which are the specifications that would let you compare it against a standalone grinder. What earlier copy does confirm is a 15 bar Italian pump and a thermocoil heating system, both of which are manufacturer claims absent from the structured data.
Baskets, Pressure and Extraction
Breville machines in this line ship with both pressurised and single wall baskets, which is the arrangement that makes an all in one worth owning: you start with the pressurised basket and pre ground coffee, then move to the single wall basket once the grinder is dialled in. The listing does not itemise what is in the box, so confirm it before ordering.
The 15 bar figure is a pump maximum rather than a brewing pressure. Espresso extracts near 9 bar and the machine reduces the pump output through a relief valve or the basket. The portafilter is Breville's own 54mm standard rather than the 58mm commercial size, which the listing also does not state. Breville baskets and tampers are widely available, so the format is not obscure, but the third party ecosystem is smaller than for 58mm and dose recipes written for commercial baskets will not transfer directly.
Steam Wand and Milk
Earlier copy describes a 360 degree swivel steam wand. A full swing is genuinely useful because it lets you position a pitcher at the angle that creates a proper whirlpool rather than working against the drip tray, and it is one of the details that separates a machine designed for milk drinks from one that merely has a wand attached.
Published owner feedback on the BES860XL wand is mixed, and the usual observation is that steam power is adequate rather than abundant. On a single thermocoil machine that is expected: the same circuit heats water for brewing and then climbs to steam temperature, so steam pressure is finite and recovery between drinks is real. One or two milk drinks are comfortable; a run of four is not. A machine with a separate steam circuit, such as the Breville BES920XL Dual Boiler, is what solves that properly.
Tank, Water Filter and Footprint
Earlier copy puts the water tank at 67 fluid ounces, roughly two litres, which is large and appropriate for a machine that grinds and brews several times a day. The listing confirms a removable tank and a water filter among the special features. The filter cartridge sits in the tank and reduces the minerals that form scale, which extends the interval between descales and is a consumable with a replacement schedule.
At 11.5 by 14.5 by 13.25 inches this is a substantial appliance, and the height figure is the one to check because the bean hopper loads from the top and adds to the real clearance requirement. Descaling remains necessary even with the filter fitted, and a product from our coffee and espresso machine cleaning products selection run on schedule is what keeps a thermocoil machine working past its warranty.
Errors in the Listing Data
The item weight reads 2 pounds. That is not close to correct for a machine of this size with a metal body, a burr grinder and a two litre tank; the real figure is more than ten times that. Anyone planning where to put the machine or how to move it should ignore this field entirely.
The operation mode reads Manual. In espresso terminology manual means a lever machine where you generate the pressure with your own arm. This is a semi-automatic pump machine with programmable shot volumes, which is a different product requiring a different skill set. The included components field reads simply 1, which conveys nothing. The UPC field carries two different barcode numbers, and the machine's dimensions are labelled Product Dimensions without axis labels, so which figure is width and which is depth is not stated. Together these mean the structured data on this page is unusually unreliable even by the standards of this category.
What the Specifications Do Not Settle
The listing does not state the actual weight, the portafilter diameter, the number of grind settings, the burr size, the bean hopper capacity, the water tank capacity as a confirmed field, the boiler or thermocoil wattage, the heat up time, whether both pressurised and single wall baskets are supplied, the cup clearance, or the warranty term. Earlier copy refers to a one year limited warranty, which is a claim rather than a confirmed field.

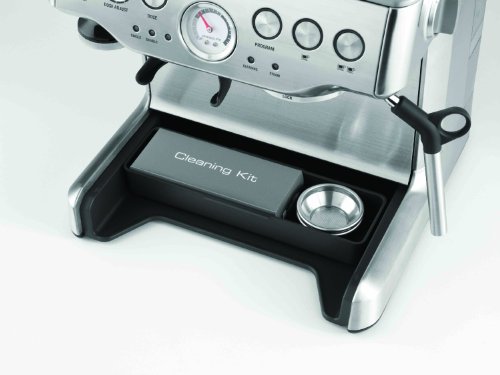

It also does not state whether a milk pitcher, a tamper, a cleaning tool and a razor dose trimmer are included, all of which Breville has supplied with machines in this line at various points. Since those accessories represent a meaningful additional cost if bought separately, it is worth confirming with the seller.
Who It Suits
This suits someone who wants fresh ground espresso from a single appliance, has the counter space for a full size machine, and is prepared to learn the grind and dose side of it. The integrated grinder is the whole proposition and it works: the gap between fresh ground and pre ground coffee is larger than the gap between most machines at this price. The long production history means parts, baskets and accumulated knowledge are all easy to find. The Breville Barista Pro BES878 is the faster heating machine in the same family.
It suits you poorly if you want a serious grinder, because an integrated one at this price is a compromise and a standalone grinder would outperform it. It suits you poorly for several milk drinks in a row, given the single heating circuit. And it suits you poorly if you want coffee without decisions, in which case a bean to cup machine from our super automatic espresso machine section automates the whole sequence rather than half of it. The Breville Infuser BES840XL is the bare machine for anyone who would rather buy the grinder separately.
