Description

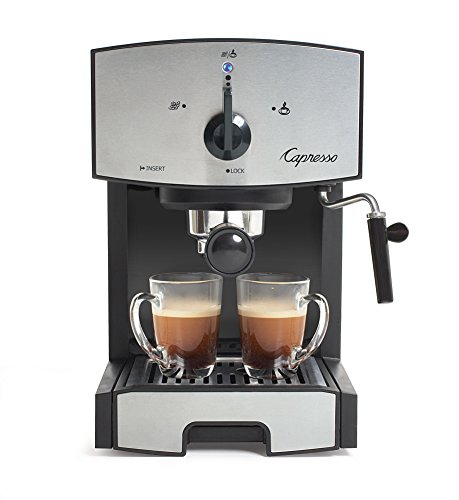

The Capresso EC50, catalogue number 117.05, is a compact pump espresso and cappuccino machine in a stainless steel and black body. The listing gives dimensions of 9 inches deep, 8 inches wide and 12 inches high, a weight of 8 pounds and a capacity recorded as 1242.09 millilitres, which is 42 fluid ounces. It has a self locking filter holder, a frothing wand and a removable tank.
Eight inches wide by 9 inches deep is genuinely small, and the 12 inch height clears any wall cabinet. That combination is the reason to consider the EC50 over the many machines that claim compact and then need 15 inches of depth. Against the rest of our espresso machines category it gives up capability rather than convenience, and for a lot of buyers that is the right trade.
The Pump and the Lined Thermoblock
Earlier listing copy describes a 15 bar pump and a stainless steel lined Thermoblock. Neither figure is in the structured specification, so both are manufacturer claims. Read the bar rating as a pump maximum in any case: espresso extracts near 9 bar and every consumer machine reduces the pump output through a relief valve or the basket itself.
The lining claim is the more interesting one. A plain aluminium thermoblock puts hot water in contact with aluminium; a stainless lined one keeps the water in a steel channel instead. If accurate, that is a genuine build advantage on a machine at this price and it addresses a common complaint about cheap thermoblocks. The architecture still behaves like a thermoblock: quick from cold, low standby draw, a transition wait between brewing and steaming, and sensitivity to scale because the channel is narrow. Descaling on schedule with a product from our coffee and espresso machine cleaning products selection is what keeps it working.
The Self Locking Filter Holder
The self locking filter holder is a small feature worth explaining because it changes a daily annoyance. On most budget machines the filter basket sits loose in the portafilter, so when you invert the portafilter to knock out the used puck, the basket falls out with it. Owners end up holding it in with a thumb or fishing it out of the bin.
A self locking holder retains the basket while you knock out. It sounds trivial and it is the kind of thing that determines whether a machine is pleasant to use twice a day for three years. Combined with the compact footprint, it suggests a machine designed around daily handling rather than around a specification sheet.
The drip tray is removable and the tank comes out, which covers the two parts that need regular attention. What the listing does not describe is the shower screen, which on any pump machine accumulates coffee oils and eventually needs unscrewing and scrubbing. On a machine with no backflush capability, that periodic strip down is the only way to clear it, and it is worth doing every few months rather than waiting for the flow to slow.
The 42 Ounce Tank and Cup Clearance
Forty two ounces is roughly 1.25 litres, which is a reasonable capacity for a machine of this size and larger than the one litre tanks common at this price. It is removable, so it fills at the tap. The capacity field records it as 1242.09 millilitres, which is an unconverted 42 fluid ounces carried through to two decimal places; the precision is an artefact of the conversion rather than a meaningful measurement.
Cup clearance is the specification the compact footprint costs you, and published owner feedback is consistent that vertical space under the group is limited. A 12 inch tall machine has to fit a tank, a group and a drip tray into that height, and something gives. Espresso cups fit; tall mugs and travel cups may not. Anyone who takes long drinks in a large mug should treat this as the machine's main limitation rather than a detail, and no clearance figure is published for either drip tray position.
The Frothing Wand
The machine has a frothing wand fed from the same thermoblock that brews. The listing does not describe the tip, so whether it is a bare wand or a sleeved panarello type is unstated, and that determines what you can make. A sleeve pulls in air automatically and gives thick cappuccino foam forgivingly; a bare tip allows the flowing microfoam a latte needs but demands technique.
Published owner reports describe the wand as powerful for the class and note that it is audible in use. On a single thermoblock the sequence is fixed: brew, wait for the block to reach steam temperature, steam, then purge before brewing again. One milk drink is comfortable, two is slower, three in a row is tedious. That is a characteristic of the architecture rather than of this machine, and a separate steam circuit such as the one on the AIRMSEN BCM2308 is what solves it.
What the Specifications Do Not Settle
This listing carries only six fields, two of which are import artefacts: Capacity 1242.09 Milliliters and Item Weight 8 Pounds both appear with the field name duplicated as their own value. The only special feature listed is Lightweight, which describes nothing about what the machine does.
Substantively, the listing does not state the portafilter diameter, whether the supplied baskets are pressurised or single wall, the pump pressure as a confirmed field, the wattage, the heat up time, the brew temperature, the cup clearance, the auto shut off interval, whether a tamper or milk pitcher is included, or the warranty term. It does not state whether the machine has a three way solenoid valve, which decides whether the used puck knocks out dry or has to be scraped out wet. Given the price and the self locking holder, pressurised baskets and no solenoid are the reasonable expectations, but neither is confirmed.
Who It Suits
This suits someone with very little counter space who wants a real pump machine and a frothing wand, drinks espresso and cappuccino rather than large mugs of coffee, and is happy using pre ground coffee. The small footprint, the reasonable tank and the self locking filter holder together make it a machine that fits into a kitchen rather than dominating one. The Capresso EC100 is the closer relative in the same range.
It suits you poorly if you drink from tall mugs, given the cup clearance. It suits you poorly if you intend to buy a burr grinder and dial shots in, since the baskets are almost certainly pressurised and the portafilter format is undocumented. And it suits you poorly for several milk drinks in a row. Anyone who wants coffee without a process should look at a capsule machine such as the Nespresso Inissia instead, which takes even less space and asks nothing of you. The Calphalon compact espresso machine is the other narrow pump machine to weigh against it.
